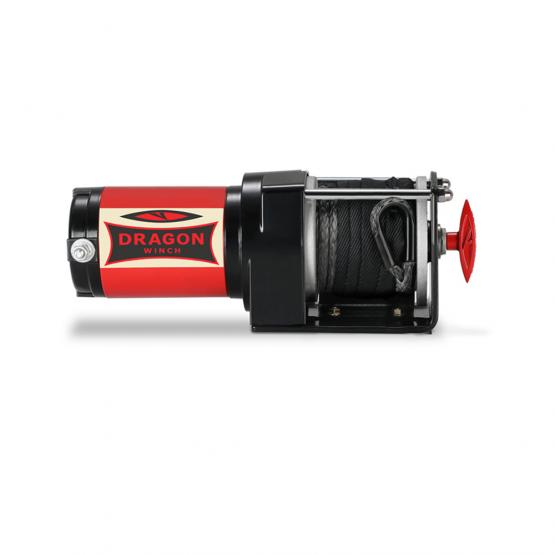

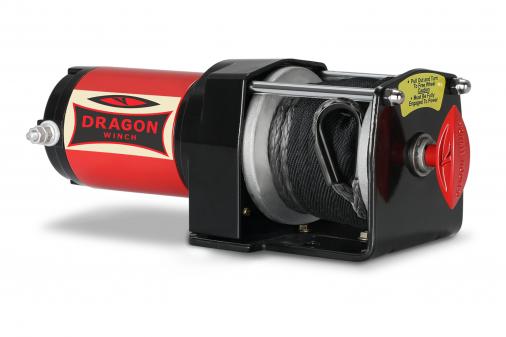

Winch 3000Lbs ST (1360kg) Dragon Winch Maverick Synthetic Rope
£196.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch 3000Lbs ST (1360kg) Dragon Winch Maverick Synthetic Rope
Information:
Voltage: 12V
Power: 1.4 HP
Towing capacity: 3000 lb/ 1360 kg
Reduction: 153:1
Brake type: self-locking
Length of wire rope: 10 m
Total weight of the set: 9 kg

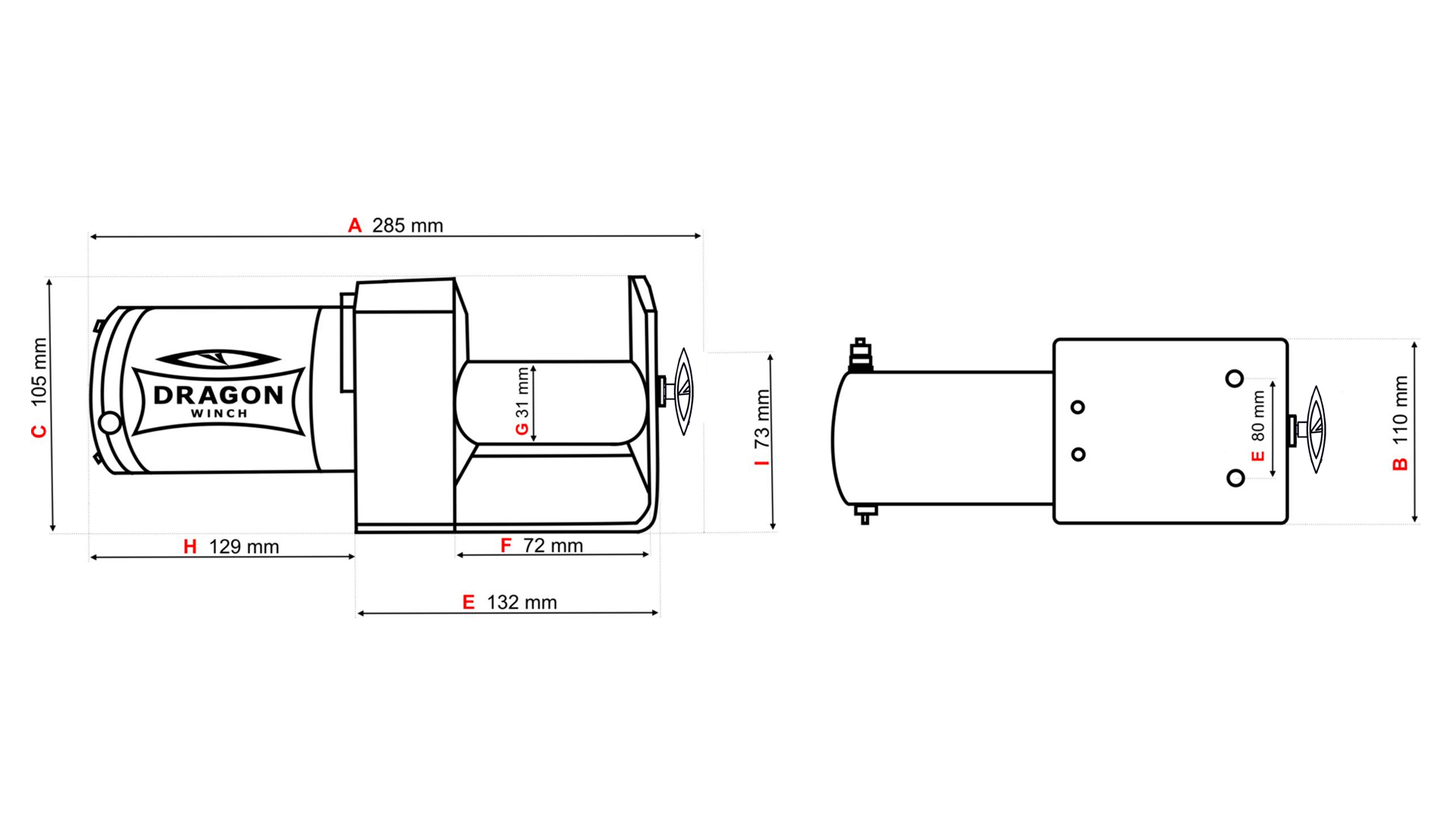

Winch dimensions (LxWxH): 280 mm x 100 mm x 100 mm
| Speed of rope winding (first layer of rope on the drum) | ||||
| LOAD ON ROPE | kg | no load | 453 | 1360 |
| ROPE SPEED | m/min | 3.5 | 2.4 | 0.8 |
| POWER CONSUMPTION | (amps) | 11 | 53 | 133 |
| Tensive force depending on the layer of the rope | |||||||
| COOLING | 1 | 2 | 3 | 4 | 5 | ||
| ROPE DRAWING POWER | kg | 1360 | 1074 | 924 | 802 | 667 | |
| AMOUNT OF ROPE ON DRUM | m | 1.5 | 3,4 | 5.5 | 8.2 | 10 | |
Additional information
| Weight | 10 kg |
|---|---|
| Merkevare |
