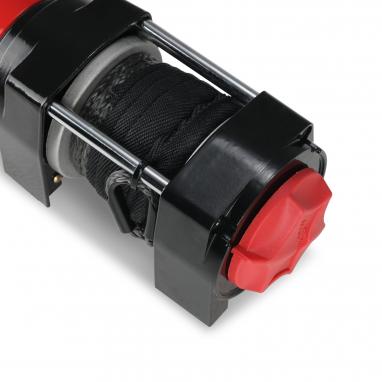

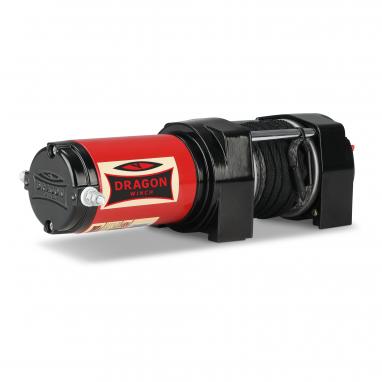

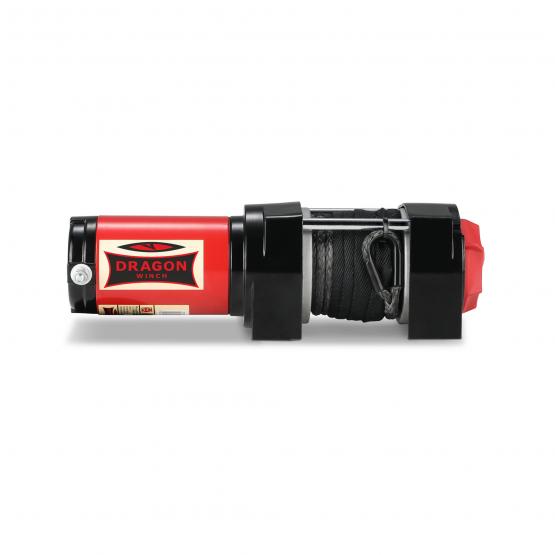

Winch 4000Lbs ST (1814 kg) Dragon Winch Maverick Synthetic Rope
£262.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch 4000Lbs ST (1814 kg) Dragon Winch Maverick Synthetic Rope
Information:
Voltage: 12V
Power: 1.6 hp
Towing capacity: 4000 lb / 1814 kg
Reduction: 153:1
Brake type: self-locking
Length of wire rope: 15 m
Total weight of the set: 10 kg
Distance between fixing screws: 130 mm x 80 mm
Winch dimensions (LxWxH): 320 mm x 100 mm x 100 mm
| Speed of rope winding (first layer of rope on the drum) | ||||
| LOAD ON ROPE | kg | 453 | 907 | 1814 |
| ROPE SPEED | m/min | 2.7 | 1.8 | 0.6 |
| POWER CONSUMPTION | (amps) | 39 | 78 | 138 |
| Tensive force depending on the layer of the rope | |||||||
| COOLING | 1 | 2 | 3 | 4 | 5 | 6 | |
| ROPE DRAWING POWER | kg | 1814 | 1434 | 1233 | 1071 | 889 | 707 |
| AMOUNT OF ROPE ON DRUM | m | 1.6 | 3.5 | 5,7 | 8.4 | 11.3 | 15 |
Additional information
| Weight | 10 kg |
|---|---|
