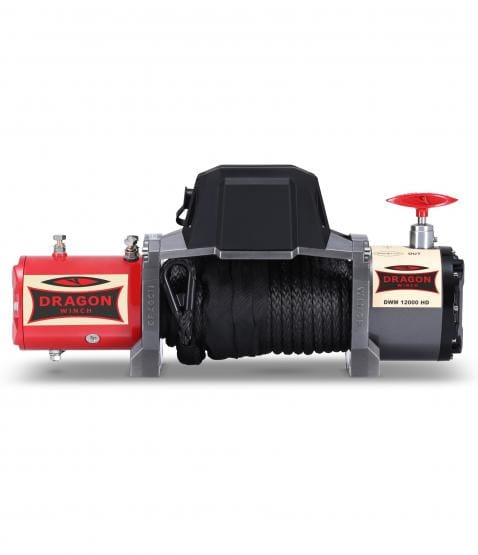

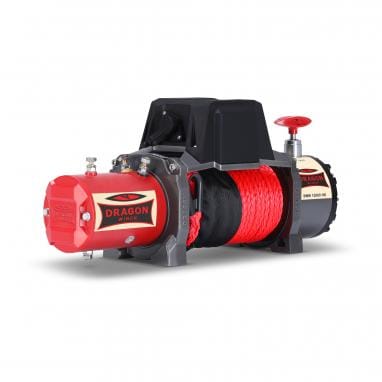

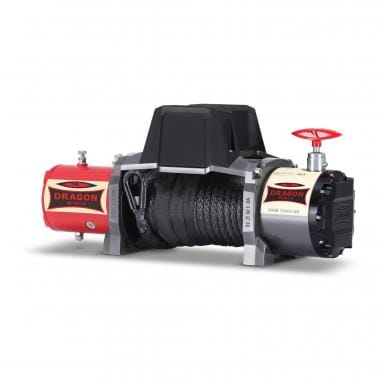

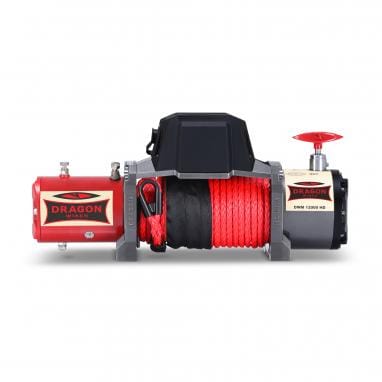

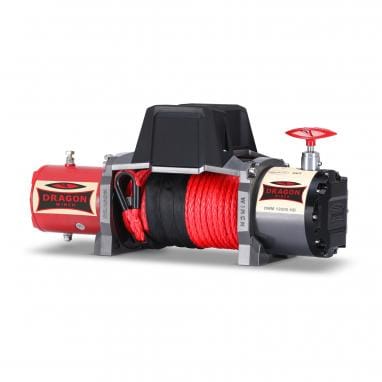

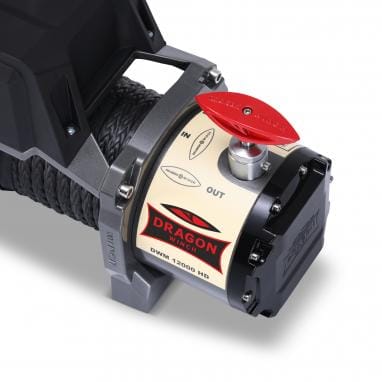

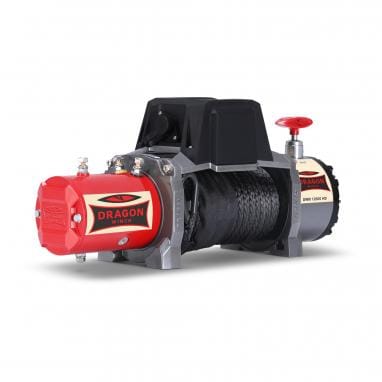

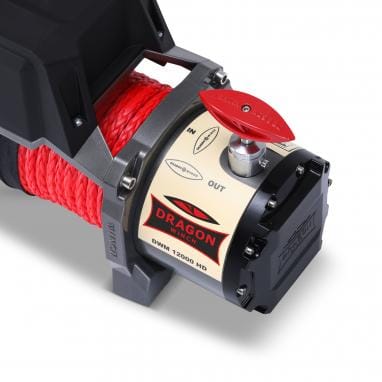

Winch 12000Lbs HDS (5443 kg) Synthetic Rope Dragon Winch Maverick
Price range: £589.00 through £681.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch Dragon Winch Maverick 12000Lbs HDS (5443 kg) Synthetic Rope
Information:
Voltage: 12V/24
Power: 6.8 HP
Towing capacity: 12000 lb / 5443 kg
Gearbox: three-speed planetary gear
Exchange: 265:1
Braking system: dynamic
length of synthetic rope: 20 m
Gross weight of the set: 30 kg
Mounting bolt pattern: 254mm x 114mm

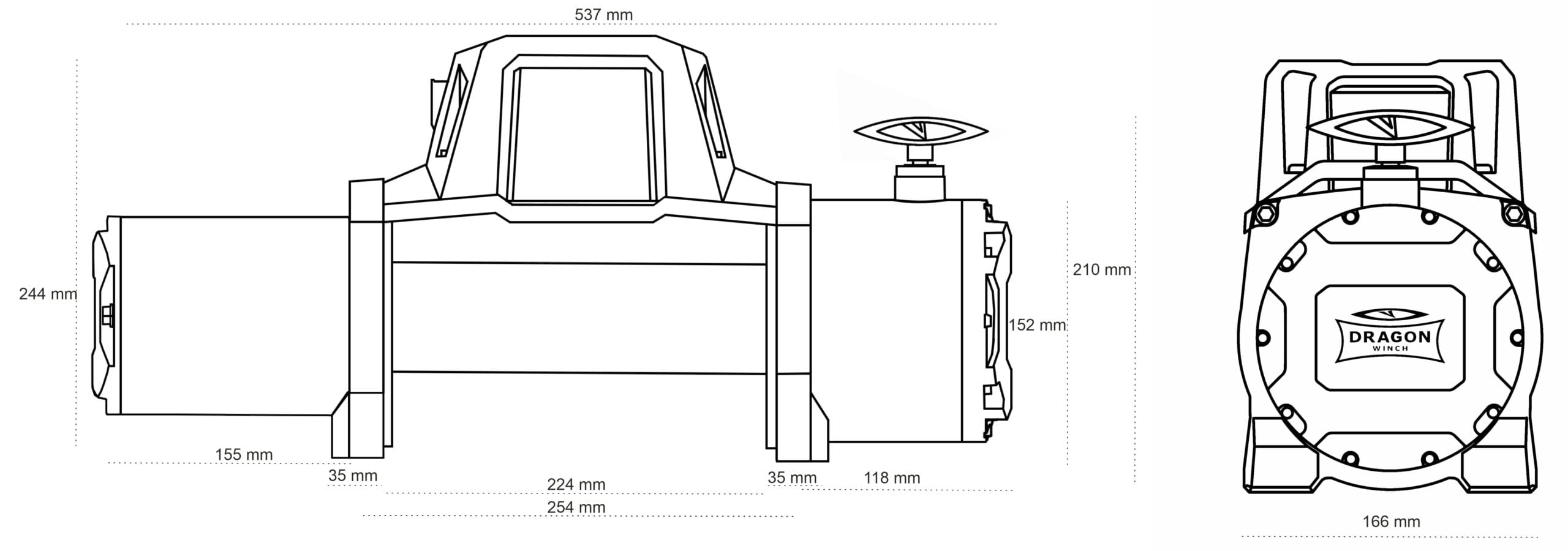

Dimensions of the winch (LxWxH): 537 mm x 166 mm x 244 mm
In the set:
| Speed of rope winding (first layer of rope on the drum) | |||||
| LOAD ON ROPE | kg | no load | 1814 | 3629 | 5443 |
| ROPE SPEED | m/min | 5.9 | 4,4 | 2.8 | 0.9 |
| POWER CONSUMPTION 12V | (amps) | 58 | 158 | 314 | 415 |
| POWER CONSUMPTION 24V | (amps) | 35 | 89 | 178 | 225 |
| Tensive force depending on the layer of the rope | ||||||
| SHEETS | 1 | 2 | 3 | 4 | 5 | |
| ROPE DRAWING POWER | kg | 5443 | 4299 | 3701 | 3211 | 2667 |
| AMOUNT OF ROPE ON DRUM | m | 5.3 | 11.5 | 18.06 | 27.3 | 30 |
Additional information
| Weight | 30 kg |
|---|---|
| Spenning (elektrisk) | 12V, 24V |
| lengde på syntetisk tau | 20m, 30m |
| Farge på tauet | Grå, Rød |
| Merkevare |
