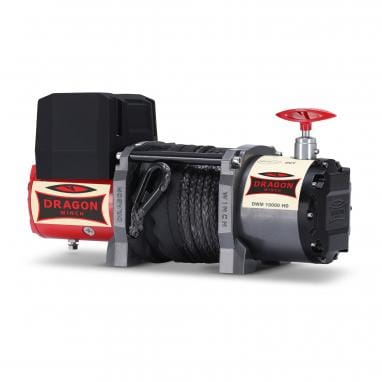

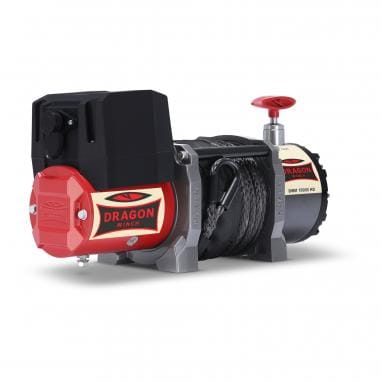

Winch 10000Lbs HDS (4536 kg) Dragon Winch Maverick Synthetic Rope
£524.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch Dragon Winch Maverick 10000Lbs HD (4536 kg)
Information:
Voltage: 12V
Power: 6.8 HP
Towing capacity: 10000 lb / 4536 kg
Gearbox: three-speed planetary gear
Exchange: 265:1
Braking system: dynamic
Length of synthetic rope: 25 m
Gross weight of the set: 27 kg
Mounting bolt pattern: 164mm x 114mm

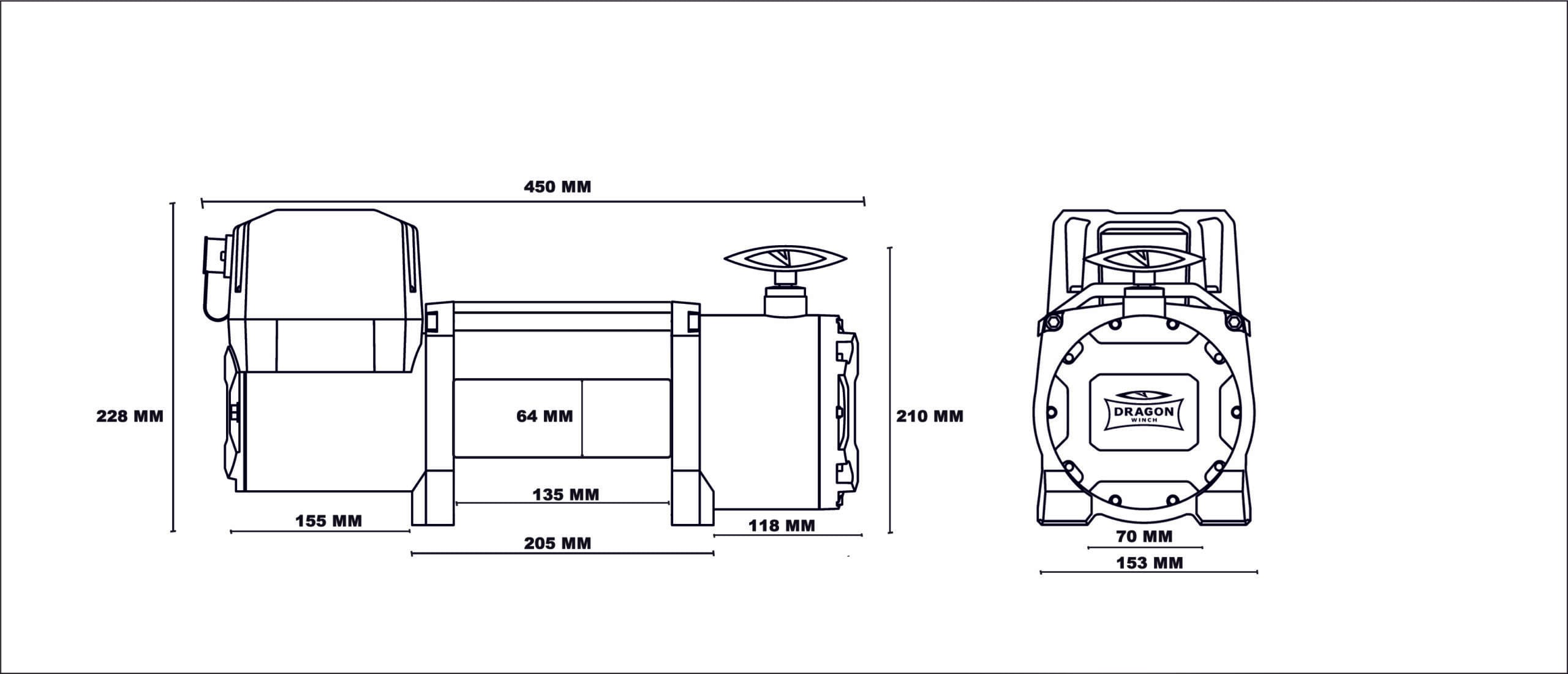

Dimensions of the winch (LxWxH): 450 mm x 153 mm x 228 mm
In the set:
| Speed of rope winding (first layer of rope on the drum) | ||||
| LOAD ON ROPE | kg | no load | 1814 | 4536 |
| ROPE SPEED | m/min | 5.9 | 3.6 | 1.3 |
| POWER CONSUMPTION | (amps) | 50 | 180 | 390 |
| Tensive force depending on the layer of the rope | ||||||
| SHEETS | 1 | 2 | 3 | 4 | 5 | |
| ROPE DRAWING POWER | kg | 4536 | 3583 | 3084 | 2676 | 2270 |
| AMOUNT OF ROPE ON DRUM | m | 3.6 | 7,8 | 12.4 | 17.8 | 24 |
Additional information
| Weight | 27 kg |
|---|---|
| Merkevare |
