Winch 12000Lbs HD (4536 kg) Dragon Winch Maverick Steel Rope
£524.00
På lager (Leveringtid: 7-10 virkedager)
Description

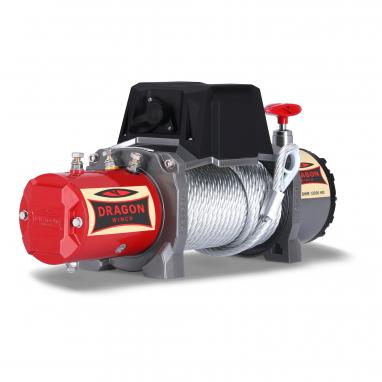

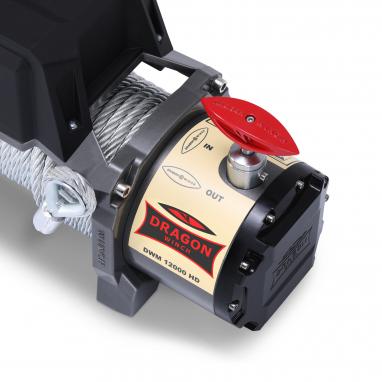

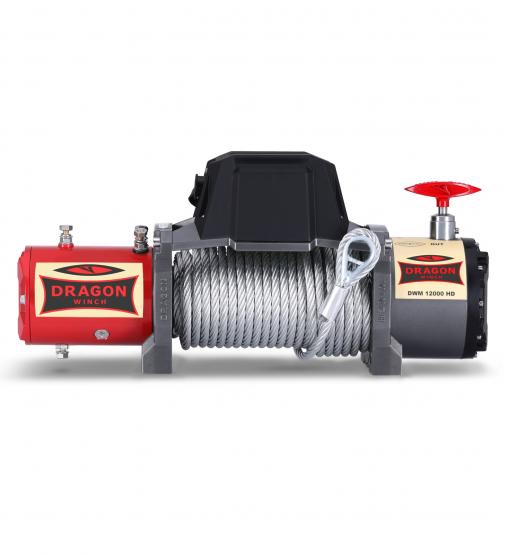

Winch Dragon Winch Maverick 12000Lbs HD (4536 kg)
Information:
Voltage: 12V/24V
Power: 6.8 HP
Towing capacity: 12000 lb / 5443 kg
Gearbox: three-speed planetary gear
Exchange: 265:1
Braking system: dynamic
Length of wire rope: 20 m
Gross weight of the set: 39 kg
Mounting bolt pattern: 254mm x 114mm

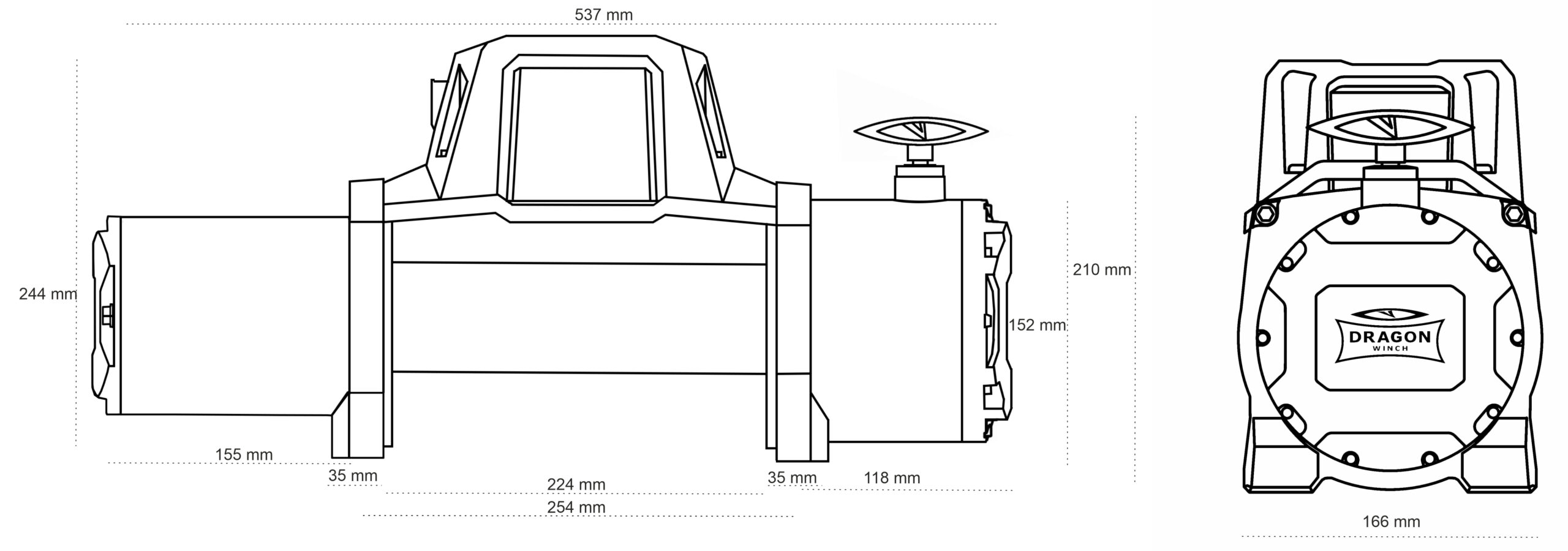

Dimensions of the winch (LxWxH): 537 mm x 166 mm x 244 mm
In the set:
| Speed of rope winding (first layer of rope on the drum) | |||||
| LOAD ON ROPE | kg | no load | 1814 | 3629 | 5443 |
| ROPE SPEED | m/min | 5.9 | 4,4 | 2.8 | 0.9 |
| POWER CONSUMPTION | (amps) | 58 | 158 | 314 | 415 |
| Tensive force depending on the layer of the rope | ||||||
| SHEETS | 1 | 2 | 3 | 4 | 5 | |
| ROPE DRAWING POWER | kg | 5443 | 4299 | 3701 | 3211 | 2667 |
| AMOUNT OF ROPE ON DRUM | m | 5.3 | 11.5 | 18.6 | 27.3 | 30 |
Additional information
| Weight | 35 kg |
|---|---|
| Merkevare |
