Winch DWH 3500 HD S (1588 kg) Synthetic Rope
£262.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch DWH 3500 HD S (1588 kg) Synthetic Rope
Information:
Voltage: 12V
Engine: 1.6 HP
Pulling speed: 3500 lb/1588 kg
Gear: 3-speed planetary
Reduction: 138:1
Brake: automatic
Length of synthetic rope: 15 m
Weight: 11 kg

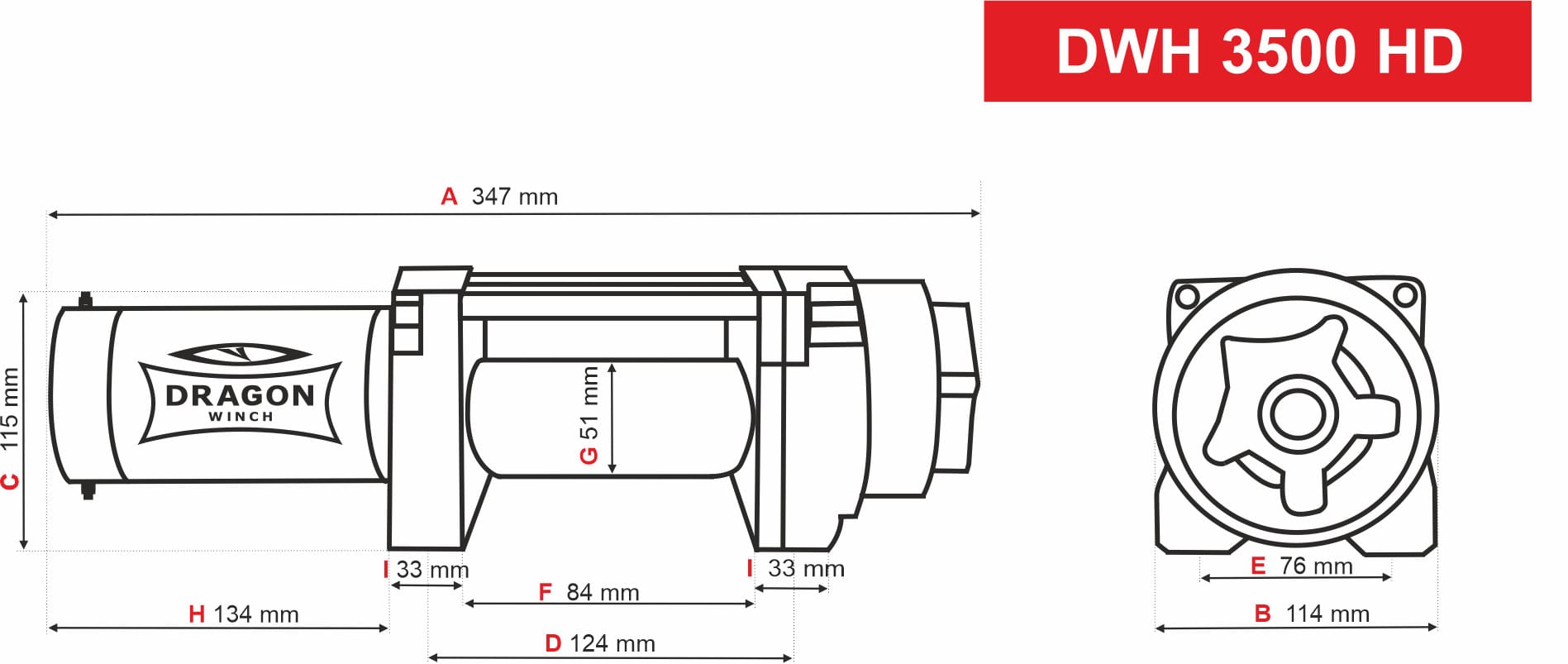

Distance between fixing screws: 124 mm x 76 mm
Overall size: 354mm x 114mm x115mm
| Speed of rope winding (first layer of rope on the drum): | |||||
| LOAD ON ROPE | kg | no load | 453 | 907 | 1587 |
| ROPE SPEED | m/min | 5.4 | 4.8 | 4.0 | 3.0 |
| POWER CONSUMPTION 12V | (amps) | 19 | 49 | 96 | 150 |
| Tensive force depending on the layer of the rope | ||||||
| COOLING | 1 | 2 | 3 | 4 | 5 | |
| ROPE PULL POWER | kg | 1587 | 1254 | 1079 | 967 | 778 |
| QUANTITY OF ROPE ON DRUM | m | 2.5 | 5.3 | 8.4 | 12.2 | 15 |
Additional information
| Weight | 10 kg |
|---|---|
