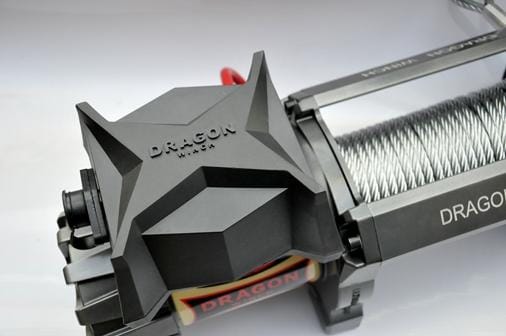

Winch DWH 9000 HDS (4082 kg) Steel rope
£949.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch DWH 9000 HDS (4082 kg) Steel rope
Information:
Voltage: 12V

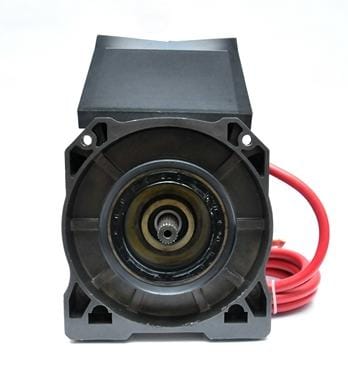

Engine: 9 hp
Pulling speed: 4082 kg 9000 lb

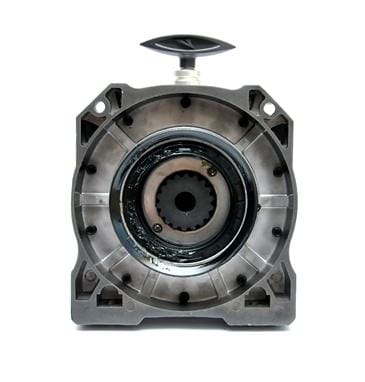

Gear: 3-speed planetary
Reduction: 138:1
Brake: dynamic
Length of the wire rope: 28 m
Weight: 46 kg

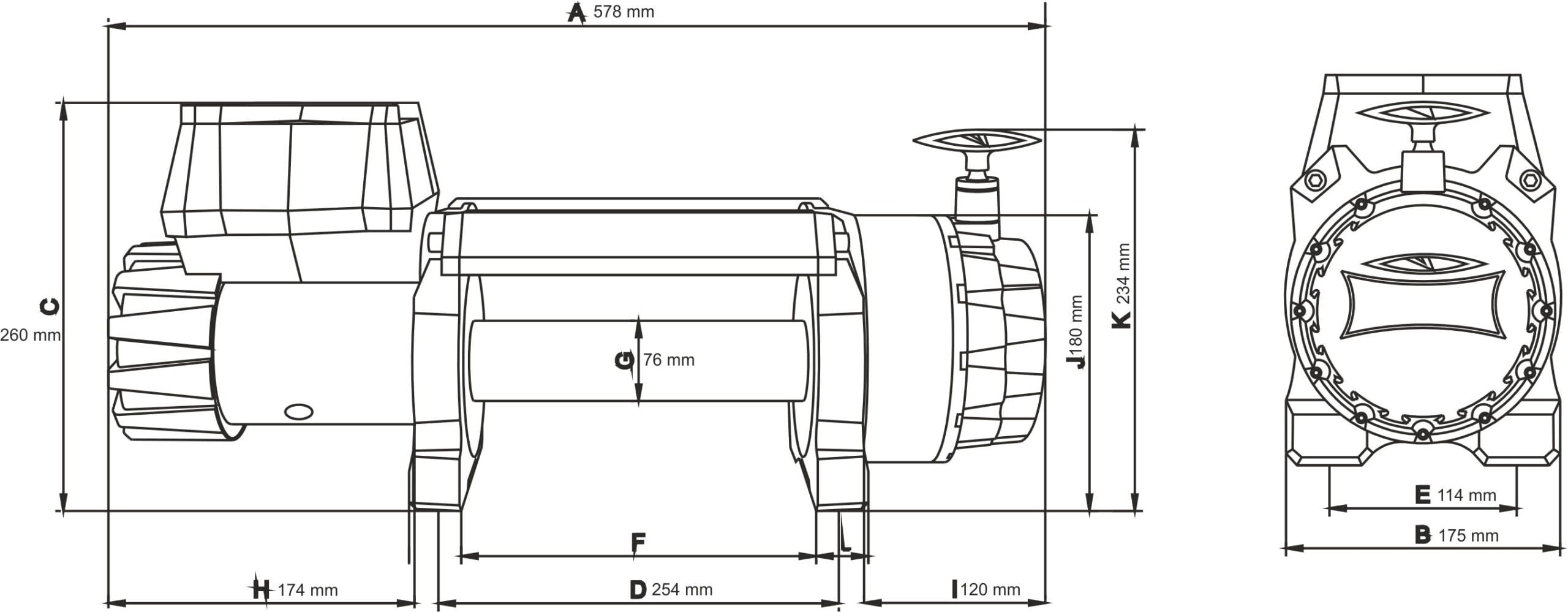

Distance between fixing screws: 254 mm x 114 mm
Overall size: 578mm x 175mm x 260mm
| Speed of rope winding (first layer of rope on the drum): | |||||
| LOAD ON ROPE | kg | no load | 1814 | 2639 | 4082 |
| ROPE SPEED | m/min | 10.9 | 8.8 | 6.2 | 5.4 |
| POWER CONSUMPTION 12V | (amps) | 70 | 211 | 422 | 480 |
| Tensive force depending on the layer of the rope | ||||||
| COOLING | 1 | 2 | 3 | 4 | ||
| ROPE PULL POWER | kg | 4082 | 3225 | 2776 | 2408 | |
| QUANTITY OF ROPE ON DRUM | m | 6.2 | 13.8 | 22 | 28 | |
Additional information
| Weight | 46 kg |
|---|---|
| Merkevare |
