Winch DWH 4500 HD S (2041 kg) Synthetic Rope
£445.00
På lager (Leveringtid: 7-10 virkedager)
Description
Winch DWH 4500 HD S (2041 kg) Synthetic Rope
Information:
Voltage: 12V
Engine: 1.9 HP
Pulling speed: 4500 lb/2041 kg
Gear: 3-speed planetary
Reduction: 138:1
Brake: automatic
Length of synthetic rope: 15 m
Weight: 13 kg

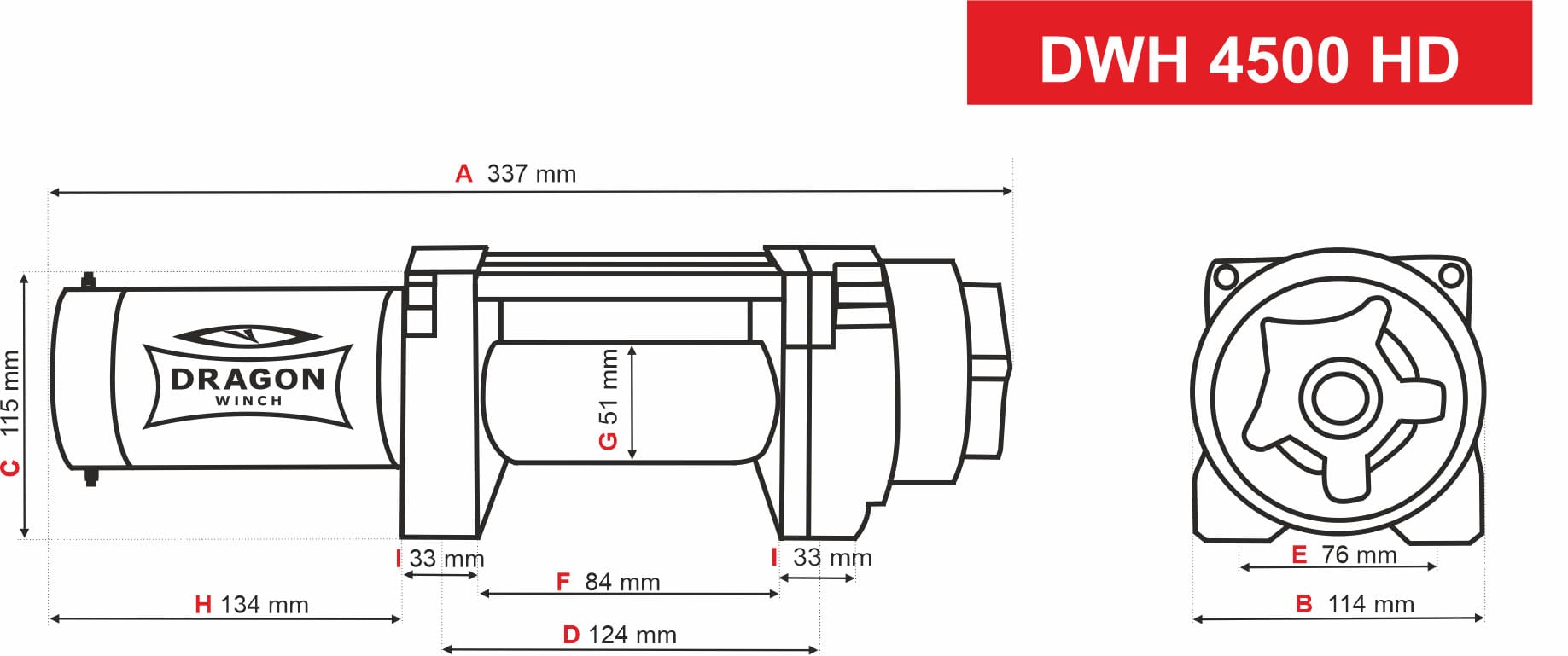

Overall size: 340mm x 114mm x 115mm
| Speed of rope winding (first layer of rope on the drum): | |||||
| LOAD ON ROPE | kg | no load | 453 | 907 | 2041 |
| ROPE SPEED | m/min | 6.3 | 5.3 | 4.5 | 2.1 |
| POWER CONSUMPTION 12V | (amps) | 23 | 40 | 81 | 160 |
| Tensive force depending on the layer of the rope | ||||||
| COOLING | 1 | 2 | 3 | 4 | 5 | |
| ROPE PULL POWER | kg | 2041 | 1612 | 1388 | 1204 | 1001 |
| QUANTITY OF ROPE ON DRUM | m | 2,3 | 4.9 | 8.0 | 11.4 | 15 |
Additional information
| Weight | 13 kg |
|---|---|
